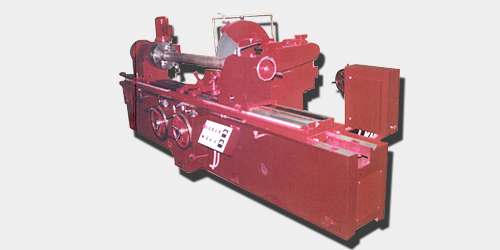

| ::Roll-Grinding-Machine:: |
| Technical Specifications |
| Particulars |
| Max. Distance Between Centres |
60" |
84" |
104" |
120" |
140" |
160" |
| Size of Dog chuck on work head side only |
12" |
14" |
16" |
16" |
16" |
16" |
| Max. weight of Roll to Be Grinded (Kg) |
500 |
800 |
1500 |
2000 |
2500 |
3000 |
| Work head Speed (R.P.M.) |
27-41-61 |
27-41-61 |
18-27-41 |
18-27-41 |
18-27-41 |
18-27-41 |
| Variable Speed with A.C. Drive (R.P.M.) |
20 to 80 |
20 to 80 |
20 to 80 |
20 to 80 |
20 to 80 |
20 to 80 |
| Width of Table Top |
11" |
12" |
12" |
12" |
14" |
14" |
| Center Height |
10 1/2" |
13 1/4" |
13 1/4" |
13 1/4" |
13 1/4" |
13 1/4" |
| Grinding Wheel |
26"x1 1/2"x 8" |
28"x1 1/2" x 8" |
28"x1 1/2" x 8" |
30"x 2" x 12" |
30"x 2" x 12" |
30"x 2" x 12" |
| Grinding Wheel Speed (R.P.M) |
900 |
800 |
800 |
700 |
700 |
700 |
| Wheelhead Motor (H.P) |
5 |
7.5 |
7.5 |
10 |
10 |
10 |
| Workhead Motor (H.P) |
1 |
2 |
2 |
2 |
2 |
2 |
| Auto Table Motor (H.P) |
1 |
1 |
1 |
2 |
2 |
2 |
| Auto Table Travel per mintue |
1 1/4"
2 1/4"
4 1/2" |
4 1/2"
1 1/4"
2 1/4"
4 1/2" |
1 1/4"
2 1/4"
4 1/2" |
1"
1 3/4"
3 1/2" |
1"
1 3/4"
3 1/2" |
1"
1 3/4"
3 1/2" |
| Measurement |
| Total Height |
1500 |
1600 |
1600 |
1750 |
1750 |
1750 |
| Total Length |
3400 |
4300 |
4900 |
5800 |
7625 |
8225 |
| Total Width |
1650 |
172 |
1725 |
1825 |
1825 |
1825 |
| Approximate Net Weight |
3700 |
4700 |
5200 |
6000 |
7500 |
8500 |
| Note : Due to constant improvements the descriptions, dimensions and illustrations are not binding in detail. |
