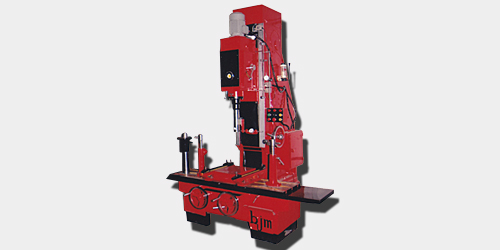

| ::Vertical-Fine-Boring-Machine:: Technical Specifications |
| Working Capacity |
Model 550 |
Model 650/1600 |
| Boring Capacity (Dia.) |
60-200 mm, |
60-250 mm, |
| Boring Depth Max. |
350 mm |
400 mm |
| Main Features |
| Spindle Travel Max. |
450 mm |
600mm |
| CI to Columns ways |
250 mm |
250 mm |
| Table Transverse Max. |
900 mm |
1315 mm |
| Speed |
| Spindle R.P.M. |
100-150
200-300
400-600 |
50-90
150-160
300-540 |
| Spindle Head Feed/Revolution |
0.05
0.10
0.15 |
0.07
0.09
0.15 |
| Note : Due to constant improvements the descriptions, dimensions and illustrations are not binding in detail. |
|
